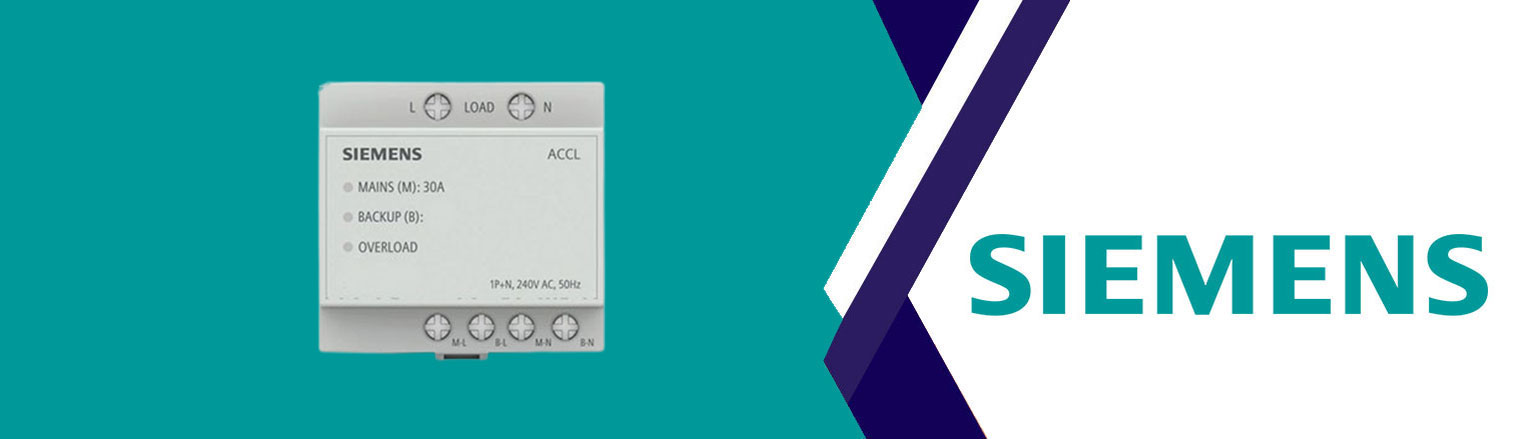

SIEMENS Double Pole Auto Change Over (ACCL)Supplier
ACCL (Automatic Changeover with Current Limiter) For a seamless, uninterrupted changeover between power sources. SIEMENS Double Pole Accl Changeover supplier in Kolkata, West Bengal, Odisha, Bihar, Jharkhand. We offer premium quality Double Pole Automatic Changeover that are available in single phase 30 A.We are also Electron(dp, fp) Double Pole Automatic Changeover Supplier and Automatic Changeover Siemens(dp) supplier.
Applications
- Double Pole ACCL perform intelligent tripping to save the age of the cables
- Reduced wiring cost as single phase Double Pole ACCL has separate control for power and lighting load
- Automate power distribution, protect expensive equipment and prevent fatal risks
- Double Pole ACCL Logic for Currents up to 120 Amps is available
Features:
- Improved circuit design enabling the relay to be in ”On” position only while the genset is in use
- While functioning on main supply the relay remains in ”Off” position
- Minimal switch over time for main supply so that even sensitive equipment like computers do not get disconnected during the switch over
- On resumption of main supply, the connected load is automatically shifted on mains
- Automatic engine switch off system for portable generators (running on petrol / kerosene) when main supply is resumed.
- Size:(LWD mm) 150 / 110 / 50 and Single phase 30 A
- Size: (LWD mm) 180 / 142 / 80
- It comes in operating voltage from 150 V to 280 V AC
Salient Features
- Microcontroller based automatic source changeover with neutral isolation
- Intelligent re-connection once trip has occurred due to either overvoltage or overload
- Optional iACCL with Prepaid Metering feature can be given for DG side
- Individual phase overload monitoring in 3 phase Double Pole ACCL & overvoltage protection for DG
- Power supply can be restored from sleep mode through MCB/Manual provision/ Mobile APP
Product Description
- Complying to IEC 60947-6 & IEC 60947-3
- Utilization Category AC 32A
- Rating : Mains – 30A, DG – 0.5A-30A
- Individual LED for Mains & DG
- Quick transfer time
- Fault Annunciation
- Higher electrical life
- Low blackout time
- Din Rail mounting
- Auto Reset Facility
- Can be used for new installation as well as for retrofits
